Blazar architecture

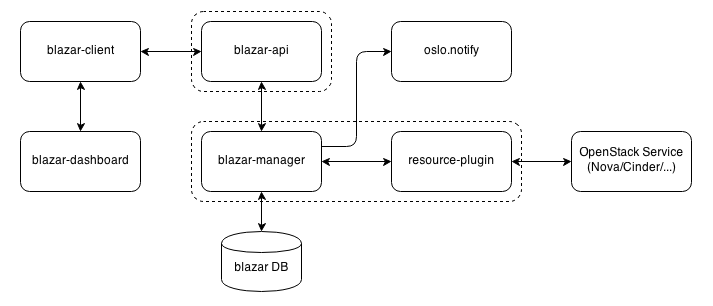

Blazar’s architecture is described by the following diagram:


blazar-client - provides a Python implementation of communication with Blazar API (blazar-api service). It works as a library, a standalone blazar CLI client, as well as a plugin of the openstack client.

blazar-api - waits for REST API calls from the outside world to redirect them to the manager. blazar-api communicates with blazar-manager via RPC.

blazar-manager - implements all logic and operations with leases, reservations and events. Communicates with Blazar DB and stores there data on leases, reservations and events. blazar-manager service is responsible for handling events created for leases and running all relevant actions. blazar-manager uses resource-plugins to work with other services’ resources.

resource-plugin - responsible for exact actions to apply to other services’ resources. All resource plugins reside in the same process as blazar-manager.

Nova resource reservation

Blazar’s integration with Nova is based on the following components working in tandem:

  • Nova

    • Nova host aggregates are used to control which hosts have their access managed by Blazar. The canonical name for the Blazar-owned host aggregate is freepool.

    • Nova flavors are used for instance reservations.

  • Blazar-Nova

    • The blazar-nova package offers the BlazarFilter filter for nova-scheduler. BlazarFilter ensures that Nova does not schedule regular (non-reservation-belonging) instances on Blazar-owned hosts (unless preemption is enabled) and that host lease boundaries are respected.

  • Placement

    • Nested resource providers are used to control which hosts are managed by Blazar.

    • Reservation classes are created and nested resource providers’ inventories are updated for instance reservations.

It is worth noting that Blazar integrations are one-way, i.e. the other services never call Blazar. Even the BlazarFilter operates in such a way that all required data is present in Nova and Placement.


Only the compute host reservation is compatible with preemptible instances at the moment.

Compute host reservation

Compute host reservation is analogous to a dedicated virtualisation host offering. The user asks for a certain number of hosts with specified characteristics, such as:

  • the region,

  • the availability zone,

  • the host capabilities extra specs,

  • the number of CPU cores,

  • the amount of available RAM,

  • the amount of available disk space.

Matching hosts are reserved for the sole use in the user’s project. Other projects will not share the same hosts during the lease period.

Virtual instance reservation

Virtual instance reservation offers a more granular compute resource reservation that does not book entire hypervisors but instead allows using Blazar-owned hosts via special time-limited flavors set up by Blazar. The user asks for a certain number of instances with specific flavor characteristics, such as:

  • the number of provided CPU cores,

  • the amount of provided RAM,

  • the amount of provided disk space,

  • affinity rule.

When the lease is active, a dedicated flavor is presented to the leasee. No other project may use this flavor. Blazar ensures, albeit in a best-effort manner, that supporting compute resources are reserved, e.g., it will not allow for oversubscribing with multiple reservation types (hosts supporting the virtual instance reservation cannot also be targeted for compute host reservation at the same time).

Neutron resource reservation

Apart from compute resources of Nova, Blazar allows to reserve certain Neutron resources. At the moment, these are only floating IPs.

The Neutron integration thus far does not require changes to the Neutron environment. The Blazar interaction looks to Neutron like any other service client interaction.

Floating IPs reservation

Blazar admin may register floating IPs with Blazar which can then later be leased to end users. End users request floating IPs from a chosen network and they will be created in user’s project once the lease starts. The allowed floating IPs must not exist in subnet’s allocation pools. Blazar will validate this only once when admin registers the floating IP with Blazar. The integration will break if admin then adds the same floating IP to the allocation pool as Blazar will try to own it and fail.
