ML2/OVN Private VLAN

Private VLAN (PVLAN) is a service plugin that provides a port-level traffic isolation model for Neutron networks backed by ML2/OVN.

Port Types

Every port on a PVLAN-enabled network is assigned one of three types:

  • promiscuous — can communicate with any other port on the network. This is the default. Special ports such as metadata ports are always treated as promiscuous.

  • isolated — can communicate only with promiscuous ports.

  • community — can communicate only with ports in the same named community and with promiscuous ports. The community name is a free-form string stored alongside the port type.

OVN Implementation

The PVLAN OVN driver implements PVLAN isolation using OVN Port Groups and ACLs, just like Security Groups. Both features can be used simultaneously on the same project, but PVLAN takes higher priority over Security Groups.

PVLAN ACLs run at priorities 1010–1012. OVN security group ACLs run at lower priorities (1000–1002). Because the drop ACL at priority 1010 fires before any security group allow rule, PVLAN takes full precedence over security group rules for any port that belongs to pvlan_pg_drop. A PVLAN port cannot be reached via a security group rule that would otherwise allow the traffic.

PVLAN only applies to ports on networks where pvlan=true.

Port Groups

The following port groups are managed:

Name pattern

Scope

pvlan_pg_drop

Global (one per deployment)

pvlan_promiscuous_<net_id>

Per PVLAN-enabled network

pvlan_isolated_<net_id>

pvlan_community_<name>_<net_id>

Per community per network

net_id in port group names has hyphens replaced with underscores to comply with OVN port group naming rules.

pvlan_pg_drop is created at process startup (PROCESS / AFTER_INIT) using a raw OVSDB transaction that atomically inserts the port group together with its two drop ACLs.

Warning

OVN uses a local ARP responder. This causes community and isolated ports to reply to ARP requests from any other ports in the same L2 network before ACL filtering happens.

ACL Glossary

These concepts are related to how PVLAN is implemented and need to be known to understand the existing ACLs and how they are defined:

  • Direction: from-lport or to-lport. Used to implement filters on traffic arriving from a logical port or forwarded to a logical port. These rules are applied to the logical switch’s ingress or egress pipeline, respectively.

  • Match: Expression that indicates which packets match the ACL.

  • Port Group reference (@): Used with inport and outport to match against the set of port names in a Port Group. This reference is resolved per-chassis, so it only matches ports that are local to the chassis evaluating the rule. This is fine for from-lport ACLs (where inport is always local to the source chassis) and for outport in to-lport ACLs (where the destination port is always local to the evaluating chassis). Port Group references are also needed for the metadata localport: the OVN metadata agent responds with ip4.src=169.254.169.254, which is not the port’s allocated IP and therefore not present in the auto-generated address sets. Since localport type LSPs are present on every chassis, inport always resolves correctly for them.

  • Address Set ($): OVN automatically maintains address sets for every Port Group ($<pg_name>_ip4 and $<pg_name>_ip6) containing the IP addresses of the ports in that group. Unlike @, address sets match against packet-level fields (ip4.src, ip6.src) that are carried in the frame itself and work regardless of which chassis evaluates the rule. This is needed in compound to-lport ACLs where the source port may be on a different chassis than the destination – using inport == @pvlan_promiscuous_<net> would fail because the promiscuous port is not local to the destination chassis.

ACL Priority Scheme

Three priority levels are used, all above the range used by security group ACLs:

Constant

Priority

Purpose

DROP_ALL_PRIORITY

1010

Drop ACLs on pvlan_pg_drop

PROMISCUOUS_PRIORITY

1011

Allow ACLs for promisc / isolated PGs

COMMUNITY_PRIORITY

1012

Allow ACLs for community PGs

Because every PVLAN port is a member of pvlan_pg_drop, all traffic is dropped by default at priority 1010. Higher-priority allow ACLs then selectively permit the traffic patterns allowed by each port type.

Community Port Group Lifecycle

Community port groups are created lazily on first use (when the first port with that community name is added to the network) and deleted automatically when the last member is removed. Deletion also removes the corresponding from-lport allow rule from the promiscuous port group.

ACL Rules per Port Group

pvlan_pg_drop port group (global):

drop  to-lport    priority=1010  outport == @pvlan_pg_drop && ip
drop  from-lport  priority=1010  inport  == @pvlan_pg_drop && ip

pvlan_promiscuous_<net> port group (created on network enable):

allow-stateless  to-lport    priority=1011  outport == @pvlan_promiscuous_<net>
allow-stateless  from-lport  priority=1011  inport  == @pvlan_promiscuous_<net>
allow-stateless  from-lport  priority=1011  inport  == @pvlan_isolated_<net>

When a community port group is created, an additional rule is appended to the promiscuous port group:

allow-stateless  from-lport  priority=1011  inport  == @pvlan_community_<name>_<net>

This rule is removed when the community port group is deleted (i.e., when its last member port is removed).

pvlan_isolated_<net> port group (created on network enable):

allow-stateless  to-lport  priority=1011
    outport == @pvlan_isolated_<net>
    && (inport == @pvlan_promiscuous_<net>
        || ip4.src == $pvlan_promiscuous_<net>_ip4
        || ip6.src == $pvlan_promiscuous_<net>_ip6)

pvlan_community_<name>_<net> port group (created on demand):

allow-stateless  to-lport  priority=1012
    outport == @pvlan_community_<name>_<net>
    && (inport == @pvlan_community_<name>_<net>
        || ip4.src == $pvlan_community_<name>_<net>_ip4
        || ip6.src == $pvlan_community_<name>_<net>_ip6)

allow-stateless  to-lport  priority=1012
    outport == @pvlan_community_<name>_<net>
    && (inport == @pvlan_promiscuous_<net>
        || ip4.src == $pvlan_promiscuous_<net>_ip4
        || ip6.src == $pvlan_promiscuous_<net>_ip6)

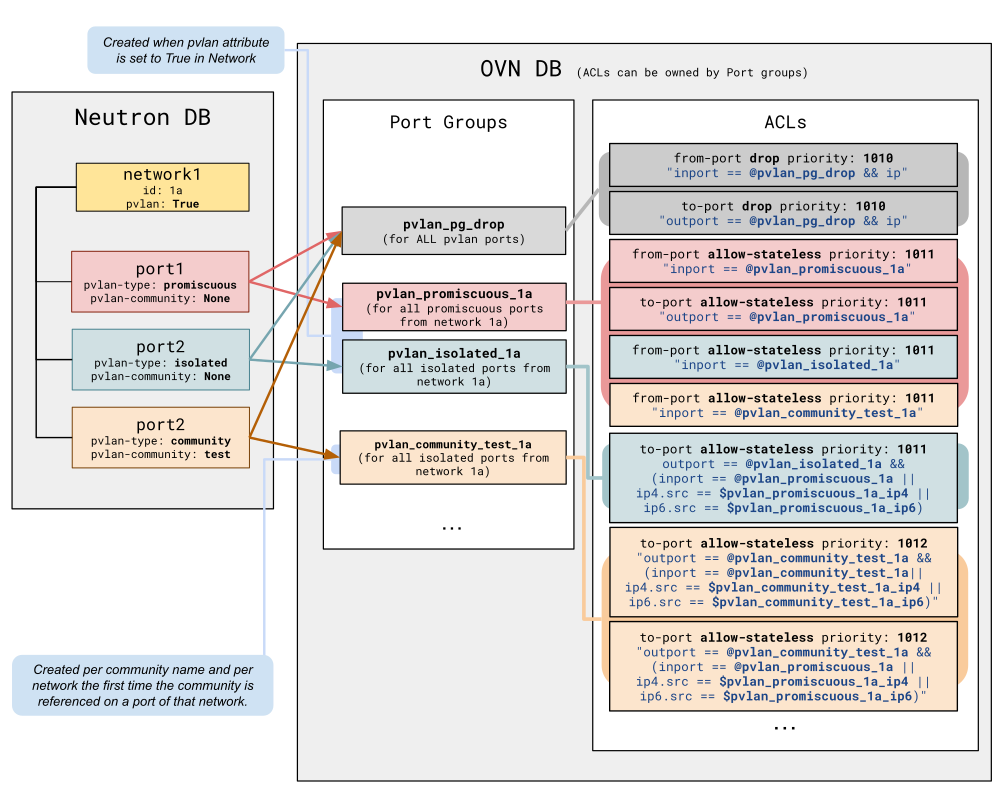

The following diagram shows how objects in the Neutron DB map to OVN DB objects:

  • port1, port2 and port3 are part of network1, which has PVLAN enabled. Each port has its equivalent Logical_Switch_Port (LSP) object in OVN. LSPs can be part of one or more Port Groups. In PVLAN, every port will belong to the Port Group for its category and to the general pvlan_pg_drop.

  • Colors indicate the type of traffic each ACL allows. Red for promiscuous, blue for isolated, and orange for community-related traffic.

  • Port Groups can be related to one or more ACLs. The diagram shows the Port Group ownership for each ACL, as described in the previous section.

OVN PVLAN port group and ACL layout

Example: Promiscuous to Isolated across Chassis

Consider an isolated port on compute 1 and a promiscuous port on compute 0, both on the same PVLAN-enabled network.

Promiscuous (compute 0) -> Isolated (compute 1):

  1. On compute 0 (source chassis), from-lport ACLs are evaluated on the ingress pipeline:

    • drop from-lport priority=1010 inport == @pvlan_pg_drop && ip – matches. Would drop.

    • allow-stateless from-lport priority=1011 inport == @pvlan_promiscuous_<net> – matches because the promiscuous port is local to compute 0. Priority 1011 beats 1010. Traffic is allowed.

  2. On compute 1 (destination chassis), to-lport ACLs are evaluated on the egress pipeline:

    • drop to-lport priority=1010 outport == @pvlan_pg_drop && ip – matches. Would drop.

    • The isolated PG’s compound ACL is evaluated: outport == @pvlan_isolated_<net> matches (the isolated port is local). For the source condition: inport == @pvlan_promiscuous_<net> does not match because the promiscuous port is on compute 0, not local to compute 1. However, ip4.src == $pvlan_promiscuous_<net>_ip4 does match because the packet’s source IP is in the address set, which is chassis-agnostic. Priority 1011 beats 1010. Traffic is allowed.

References

More information about OVN objects is available at https://man7.org/linux/man-pages/man5/ovn-nb.5.html.
