Linux bridge: High availability using VRRP¶

This architecture example augments the self-service deployment example with a high-availability mechanism using the Virtual Router Redundancy Protocol (VRRP) via keepalived and provides failover of routing for self-service networks. It requires a minimum of two network nodes because VRRP creates one master (active) instance and at least one backup instance of each router.

During normal operation, keepalived on the master router periodically transmits heartbeat packets over a hidden network that connects all VRRP routers for a particular project. Each project with VRRP routers uses a separate hidden network. By default this network uses the first value in the tenant_network_types option in the ml2_conf.ini file. For additional control, you can specify the self-service network type and physical network name for the hidden network using the l3_ha_network_type and l3_ha_network_name options in the neutron.conf file.

If keepalived on the backup router stops receiving heartbeat packets, it assumes failure of the master router and promotes the backup router to master router by configuring IP addresses on the interfaces in the qrouter namespace. In environments with more than one backup router, keepalived on the backup router with the next highest priority promotes that backup router to master router.

注釈

This high-availability mechanism configures VRRP using the same priority for all routers. Therefore, VRRP promotes the backup router with the highest IP address to the master router.

警告

There is a known bug with keepalived v1.2.15 and earlier which can cause packet loss when max_l3_agents_per_router is set to 3 or more. Therefore, we recommend that you upgrade to keepalived v1.2.16 or greater when using this feature.

Interruption of VRRP heartbeat traffic between network nodes, typically due to a network interface or physical network infrastructure failure, triggers a failover. Restarting the layer-3 agent, or failure of it, does not trigger a failover providing keepalived continues to operate.

Consider the following attributes of this high-availability mechanism to determine practicality in your environment:

Instance network traffic on self-service networks using a particular router only traverses the master instance of that router. Thus, resource limitations of a particular network node can impact all master instances of routers on that network node without triggering failover to another network node. However, you can configure the scheduler to distribute the master instance of each router uniformly across a pool of network nodes to reduce the chance of resource contention on any particular network node.
Only supports self-service networks using a router. Provider networks operate at layer-2 and rely on physical network infrastructure for redundancy.
For instances with a floating IPv4 address, maintains state of network connections during failover as a side effect of 1:1 static NAT. The mechanism does not actually implement connection tracking.

For production deployments, we recommend at least three network nodes with sufficient resources to handle network traffic for the entire environment if one network node fails. Also, the remaining two nodes can continue to provide redundancy.

警告

This high-availability mechanism is not compatible with the layer-2 population mechanism. You must disable layer-2 population in the linuxbridge_agent.ini file and restart the Linux bridge agent on all existing network and compute nodes prior to deploying the example configuration.

前提¶

Add one network node with the following components:

Three network interfaces: management, provider, and overlay.
OpenStack Networking layer-2 agent, layer-3 agent, and any dependencies.

注釈

You can keep the DHCP and metadata agents on each compute node or move them to the network nodes.

アーキテクチャー¶

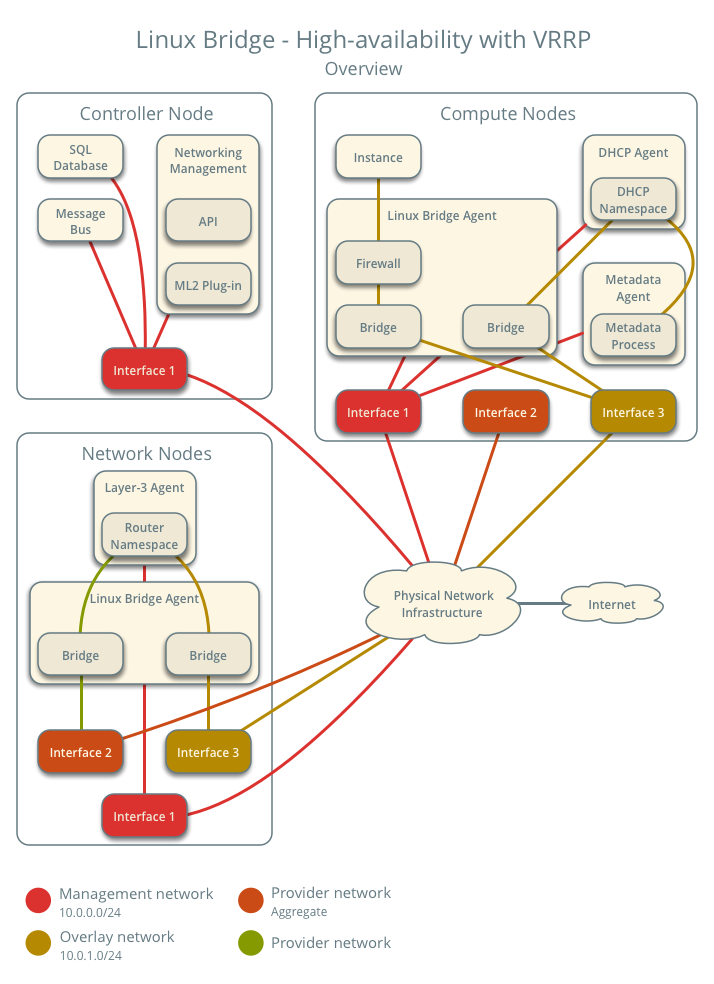

High-availability using Linux bridge with VRRP - overview

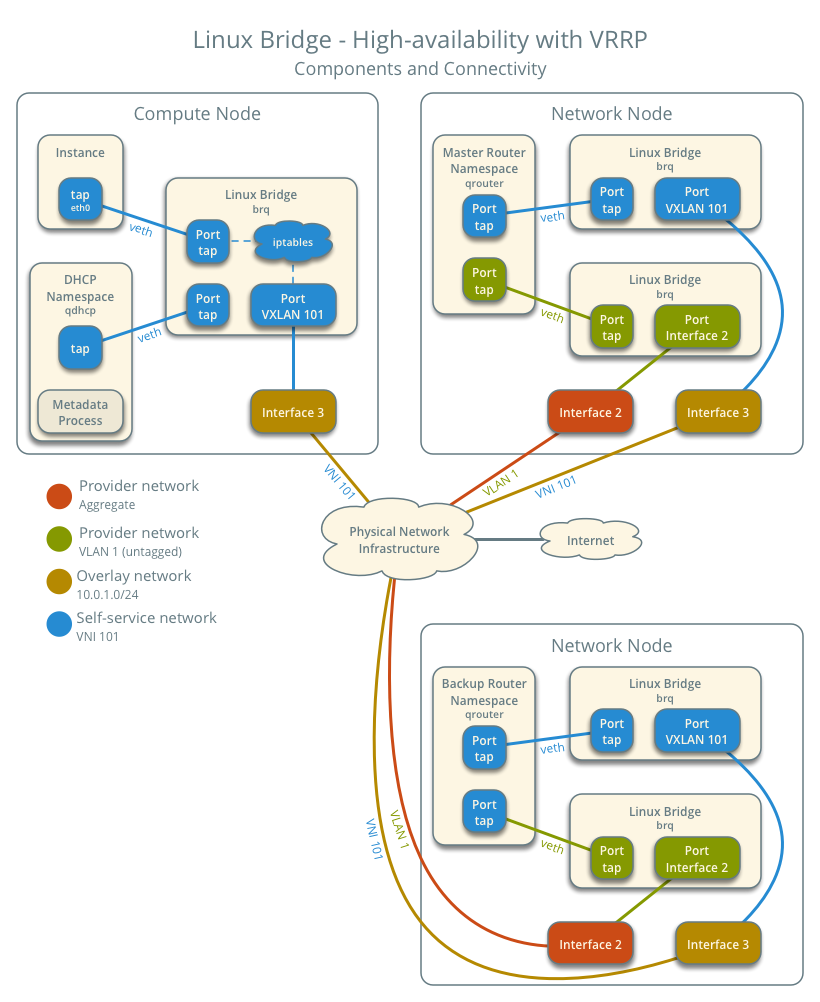

The following figure shows components and connectivity for one self-service network and one untagged (flat) network. The master router resides on network node 1. In this particular case, the instance resides on the same compute node as the DHCP agent for the network. If the DHCP agent resides on another compute node, the latter only contains a DHCP namespace and Linux bridge with a port on the overlay physical network interface.

High-availability using Linux bridge with VRRP - components and connectivity - one network

設定例¶

Use the following example configuration as a template to add support for high-availability using VRRP to an existing operational environment that supports self-service networks.

コントローラーノード¶

neutron.conf ファイル:
- Enable VRRP.
```
[DEFAULT]
l3_ha = True
```
以下のサービスを再起動します。
- サーバー

ネットワークノード 1¶

変更なし。

ネットワークノード 2¶

Install the Networking service Linux bridge layer-2 agent and layer-3 agent.
In the neutron.conf file, configure common options:
```
[DEFAULT]
core_plugin = ml2
auth_strategy = keystone

[database]
# ...

[keystone_authtoken]
# ...

[nova]
# ...

[agent]
# ...
```
See the Installation Tutorials and Guides and Configuration Reference for your OpenStack release to obtain the appropriate additional configuration for the [DEFAULT], [database], [keystone_authtoken], [nova], and [agent] sections.
In the linuxbridge_agent.ini file, configure the layer-2 agent.
```
[linux_bridge]
physical_interface_mappings = provider:PROVIDER_INTERFACE

[vxlan]
enable_vxlan = True
local_ip = OVERLAY_INTERFACE_IP_ADDRESS

[securitygroup]
firewall_driver = iptables
```
PROVIDER_INTERFACE は、プロバイダーネットワークを処理するインターフェース名で置き換えます。例えば、 eth1 など。

OVERLAY_INTERFACE_IP_ADDRESS は、セルフサービスネットワーク向けの VXLAN オーバーレイを扱うインターフェースの IP アドレスに置き換えます。
l3_agent.ini ファイルで L3 エージェントを設定します。
```
[DEFAULT]
interface_driver = linuxbridge
external_network_bridge =
```
注釈

external_network_bridge オプションには意図的に値を指定していません。
以下のサービスを実行します。
- Linux ブリッジエージェント
- L3 エージェント

コンピュートノード¶

変更なし。

サービスの動作検証¶

管理プロジェクトのクレデンシャルを読み込みます。

エージェントが存在し、動作していることを確認します。

$ openstack network agent list
+--------------------------------------+--------------------+----------+-------------------+-------+-------+---------------------------+
| ID                                   | Agent Type         | Host     | Availability Zone | Alive | State | Binary                    |
+--------------------------------------+--------------------+----------+-------------------+-------+-------+---------------------------+
| 09de6af6-c5f1-4548-8b09-18801f068c57 | Linux bridge agent | compute2 |                   | True  | UP    | neutron-linuxbridge-agent |
| 188945d1-9e70-4803-a276-df924e0788a4 | Linux bridge agent | compute1 |                   | True  | UP    | neutron-linuxbridge-agent |
| e76c440d-d5f6-4316-a674-d689630b629e | DHCP agent         | compute1 | nova              | True  | UP    | neutron-dhcp-agent        |
| e67367de-6657-11e6-86a4-931cd04404bb | DHCP agent         | compute2 | nova              | True  | UP    | neutron-dhcp-agent        |
| e8174cae-6657-11e6-89f0-534ac6d0cb5c | Metadata agent     | compute1 |                   | True  | UP    | neutron-metadata-agent    |
| ece49ec6-6657-11e6-bafb-c7560f19197d | Metadata agent     | compute2 |                   | True  | UP    | neutron-metadata-agent    |
| 598f6357-4331-4da5-a420-0f5be000bec9 | L3 agent           | network1 | nova              | True  | UP    | neutron-l3-agent          |
| f4734e0f-bcd5-4922-a19d-e31d56b0a7ae | Linux bridge agent | network1 |                   | True  | UP    | neutron-linuxbridge-agent |
| 670e5805-340b-4182-9825-fa8319c99f23 | Linux bridge agent | network2 |                   | True  | UP    | neutron-linuxbridge-agent |
| 96224e89-7c15-42e9-89c4-8caac7abdd54 | L3 agent           | network2 | nova              | True  | UP    | neutron-l3-agent          |
+--------------------------------------+--------------------+----------+-------------------+-------+-------+---------------------------+

初期ネットワークの作成¶

Similar to the self-service deployment example, this configuration supports multiple VXLAN self-service networks. After enabling high-availability, all additional routers use VRRP. The following procedure creates an additional self-service network and router. The Networking service also supports adding high-availability to existing routers. However, the procedure requires administratively disabling and enabling each router which temporarily interrupts network connectivity for self-service networks with interfaces on that router.

Source a regular (non-administrative) project credentials.

セルフサービスネットワークを作成します。

$ openstack network create selfservice2
+-------------------------+--------------+
| Field                   | Value        |
+-------------------------+--------------+
| admin_state_up          | UP           |
| mtu                     | 1450         |
| name                    | selfservice2 |
| port_security_enabled   | True         |
| router:external         | Internal     |
| shared                  | False        |
| status                  | ACTIVE       |
+-------------------------+--------------+

セルフサービスネットワークのIPv4サブネットを作成します。

$ openstack subnet create --subnet-range 198.51.100.0/24 \
  --network selfservice2 --dns-nameserver 8.8.4.4 selfservice2-v4
+-------------------+------------------------------+
| Field             | Value                        |
+-------------------+------------------------------+
| allocation_pools  | 198.51.100.2-198.51.100.254  |
| cidr              | 198.51.100.0/24              |
| dns_nameservers   | 8.8.4.4                      |
| enable_dhcp       | True                         |
| gateway_ip        | 198.51.100.1                 |
| ip_version        | 4                            |
| name              | selfservice2-v4              |
+-------------------+------------------------------+

セルフサービスネットワークのIPv6サブネットを作成します。

$ openstack subnet create --subnet-range fd00:198:51:100::/64 --ip-version 6 \
  --ipv6-ra-mode slaac --ipv6-address-mode slaac --network selfservice2 \
  --dns-nameserver 2001:4860:4860::8844 selfservice2-v6
+-------------------+--------------------------------------------------------+
| Field             | Value                                                  |
+-------------------+--------------------------------------------------------+
| allocation_pools  | fd00:198:51:100::2-fd00:198:51:100:ffff:ffff:ffff:ffff |
| cidr              | fd00:198:51:100::/64                                   |
| dns_nameservers   | 2001:4860:4860::8844                                   |
| enable_dhcp       | True                                                   |
| gateway_ip        | fd00:198:51:100::1                                     |
| ip_version        | 6                                                      |
| ipv6_address_mode | slaac                                                  |
| ipv6_ra_mode      | slaac                                                  |
| name              | selfservice2-v6                                        |
+-------------------+--------------------------------------------------------+

ルーターを作成します。

$ openstack router create router2
+-----------------------+---------+
| Field                 | Value   |
+-----------------------+---------+
| admin_state_up        | UP      |
| name                  | router2 |
| status                | ACTIVE  |
+-----------------------+---------+

Add the IPv4 and IPv6 subnets as interfaces on the router.

$ openstack router add subnet router2 selfservice2-v4
$ openstack router add subnet router2 selfservice2-v6

注釈

These commands provide no output.

プロバイダーネットワークをルーターのゲートウェイとして追加します。
```
$ neutron router-gateway-set router2 provider1
Set gateway for router router2
```

ネットワーク動作の検証¶

管理プロジェクトのクレデンシャルを読み込みます。

Verify creation of the internal high-availability network that handles VRRP heartbeat traffic.

$ openstack network list
+--------------------------------------+----------------------------------------------------+--------------------------------------+
| ID                                   | Name                                               | Subnets                              |
+--------------------------------------+----------------------------------------------------+--------------------------------------+
| 1b8519c1-59c4-415c-9da2-a67d53c68455 | HA network tenant f986edf55ae945e2bef3cb4bfd589928 | 6843314a-1e76-4cc9-94f5-c64b7a39364a |
+--------------------------------------+----------------------------------------------------+--------------------------------------+

On each network node, verify creation of a qrouter namespace with the same ID.

ネットワークノード 1:
```
# ip netns
qrouter-b6206312-878e-497c-8ef7-eb384f8add96
```
ネットワークノード 2:
```
# ip netns
qrouter-b6206312-878e-497c-8ef7-eb384f8add96
```
注釈

The namespace for router 1 from Linux bridge: セルフサービスネットワーク should only appear on network node 1 because of creation prior to enabling VRRP.

On each network node, show the IP address of interfaces in the qrouter namespace. With the exception of the VRRP interface, only one namespace belonging to the master router instance contains IP addresses on the interfaces.

ネットワークノード 1:

# ip netns exec qrouter-b6206312-878e-497c-8ef7-eb384f8add96 ip addr show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ha-eb820380-40@if21: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
    link/ether fa:16:3e:78:ba:99 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 169.254.192.1/18 brd 169.254.255.255 scope global ha-eb820380-40
       valid_lft forever preferred_lft forever
    inet 169.254.0.1/24 scope global ha-eb820380-40
       valid_lft forever preferred_lft forever
    inet6 fe80::f816:3eff:fe78:ba99/64 scope link
       valid_lft forever preferred_lft forever
3: qr-da3504ad-ba@if24: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
    link/ether fa:16:3e:dc:8e:a8 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 198.51.100.1/24 scope global qr-da3504ad-ba
       valid_lft forever preferred_lft forever
    inet6 fe80::f816:3eff:fedc:8ea8/64 scope link
       valid_lft forever preferred_lft forever
4: qr-442e36eb-fc@if27: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
    link/ether fa:16:3e:ee:c8:41 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet6 fd00:198:51:100::1/64 scope global nodad
       valid_lft forever preferred_lft forever
    inet6 fe80::f816:3eff:feee:c841/64 scope link
       valid_lft forever preferred_lft forever
5: qg-33fedbc5-43@if28: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether fa:16:3e:03:1a:f6 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 203.0.113.21/24 scope global qg-33fedbc5-43
       valid_lft forever preferred_lft forever
    inet6 fd00:203:0:113::21/64 scope global nodad
       valid_lft forever preferred_lft forever
    inet6 fe80::f816:3eff:fe03:1af6/64 scope link
       valid_lft forever preferred_lft forever

ネットワークノード 2:

# ip netns exec qrouter-b6206312-878e-497c-8ef7-eb384f8add96 ip addr show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ha-7a7ce184-36@if8: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
    link/ether fa:16:3e:16:59:84 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 169.254.192.2/18 brd 169.254.255.255 scope global ha-7a7ce184-36
       valid_lft forever preferred_lft forever
    inet6 fe80::f816:3eff:fe16:5984/64 scope link
       valid_lft forever preferred_lft forever
3: qr-da3504ad-ba@if11: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
    link/ether fa:16:3e:dc:8e:a8 brd ff:ff:ff:ff:ff:ff link-netnsid 0
4: qr-442e36eb-fc@if14: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
5: qg-33fedbc5-43@if15: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether fa:16:3e:03:1a:f6 brd ff:ff:ff:ff:ff:ff link-netnsid 0

注釈

The master router may reside on network node 2.

Launch an instance with an interface on the addtional self-service network. For example, a CirrOS image using flavor ID 1.
```
$ openstack server create --flavor 1 --image cirros --nic net-id=NETWORK_ID selfservice-instance2
```
Replace NETWORK_ID with the ID of the additional self-service network.

Determine the IPv4 and IPv6 addresses of the instance.

$ openstack server list
+--------------------------------------+-----------------------+--------+---------------------------------------------------------------------------+
| ID                                   | Name                  | Status | Networks                                                                  |
+--------------------------------------+-----------------------+--------+---------------------------------------------------------------------------+
| bde64b00-77ae-41b9-b19a-cd8e378d9f8b | selfservice-instance2 | ACTIVE | selfservice2=fd00:198:51:100:f816:3eff:fe71:e93e, 198.51.100.4            |
+--------------------------------------+-----------------------+--------+---------------------------------------------------------------------------+

Create a floating IPv4 address on the provider network.

$ openstack floating ip create provider1
+-------------+--------------------------------------+
| Field       | Value                                |
+-------------+--------------------------------------+
| fixed_ip    | None                                 |
| id          | 0174056a-fa56-4403-b1ea-b5151a31191f |
| instance_id | None                                 |
| ip          | 203.0.113.17                         |
| pool        | provider1                            |
+-------------+--------------------------------------+

Associate the floating IPv4 address with the instance.
```
$ openstack server add floating ip selfservice-instance2 203.0.113.17
```
注釈

このコマンドは何も出力しません。

フェイルオーバーの動作検証¶

Begin a continuous ping of both the floating IPv4 address and IPv6 address of the instance. While performing the next three steps, you should see a minimal, if any, interruption of connectivity to the instance.
On the network node with the master router, administratively disable the overlay network interface.
On the other network node, verify promotion of the backup router to master router by noting addition of IP addresses to the interfaces in the qrouter namespace.
On the original network node in step 2, administratively enable the overlay network interface. Note that the master router remains on the network node in step 3.

Keepalived VRRP ヘルスチェック¶

The health of your keepalived instances can be automatically monitored via a bash script that verifies connectivity to all available and configured gateway addresses. In the event that connectivity is lost, the master router is rescheduled to another node.

If all routers lose connectivity simultaneously, the process of selecting a new master router will be repeated in a round-robin fashion until one or more routers have their connectivity restored.

To enable this feature, edit the l3_agent.ini file:

ha_vrrp_health_check_interval = 30

Where ha_vrrp_health_check_interval indicates how often in seconds the health check should run. The default value is 0, which indicates that the check should not run at all.

ネットワークトラフィックフロー¶

This high-availability mechanism simply augments Linux bridge: セルフサービスネットワーク with failover of layer-3 services to another router if the master router fails. Thus, you can reference Self-service network traffic flow for normal operation.
