How does amqp_rpc_single_reply_queue affect performance?

Rally allowed us to reveal a quite an interesting fact about Nova. We used NovaServers.boot_and_delete_server scenario to see how the amqp_rpc_single_reply_queue option affects VM bootup time (it turns on a kind of fast RPC). Some time ago it was shown that cloud performance can be boosted by setting it on, so we naturally decided to check this result with Rally. To make this test, we issued requests for booting and deleting VMs for a number of concurrent users ranging from 1 to 30 with and without the investigated option. For each group of users, a total number of 200 requests was issued. Averaged time per request is shown below:

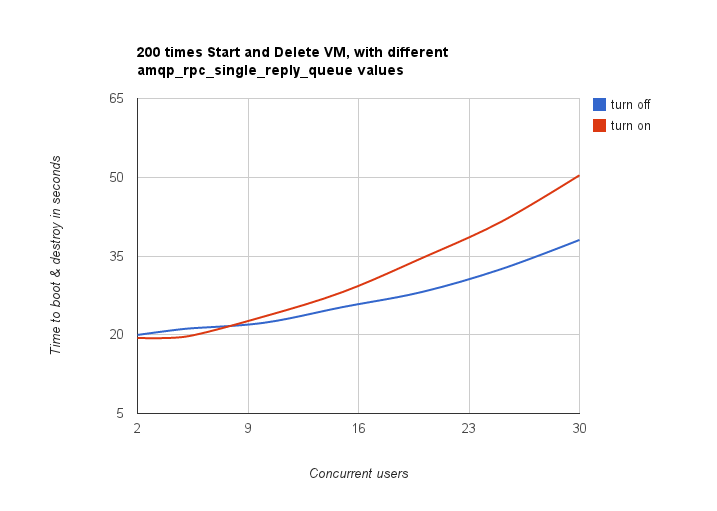

Average time to boot and delete a VM, 200 times, for 2 to 30 concurrent users. With the option on, the time grows from about 19 to about 50 seconds; with it off, from about 20 to about 38 seconds. The lines cross at about 8 concurrent users.

So Rally has unexpectedly indicated that setting the *amqp_rpc_single_reply_queue* option apparently affects the cloud performance, but in quite an opposite way rather than it was thought before.

Task

The task for one point of the chart, in the current task format. Run it for each concurrency, once with the option on and once with it off:

---
version: 2
title: amqp_rpc_single_reply_queue
subtasks:
  - title: Boot and delete a server
    scenario:
      NovaServers.boot_and_delete_server:
        flavor:
          name: "{{ flavor_name }}"
        image:
          name: "{{ image_name }}"
    runner:
      constant:
        times: 200
        concurrency: {{ concurrency }}
    contexts:
      users:
        tenants: 1
        users_per_tenant: 1

The flavor, the image and the concurrency are task arguments; pass them when you start the task:

$ rally task start amqp.yaml --task-args '{"flavor_name": "m1.tiny", "image_name": "cirros", "concurrency": 10}'
